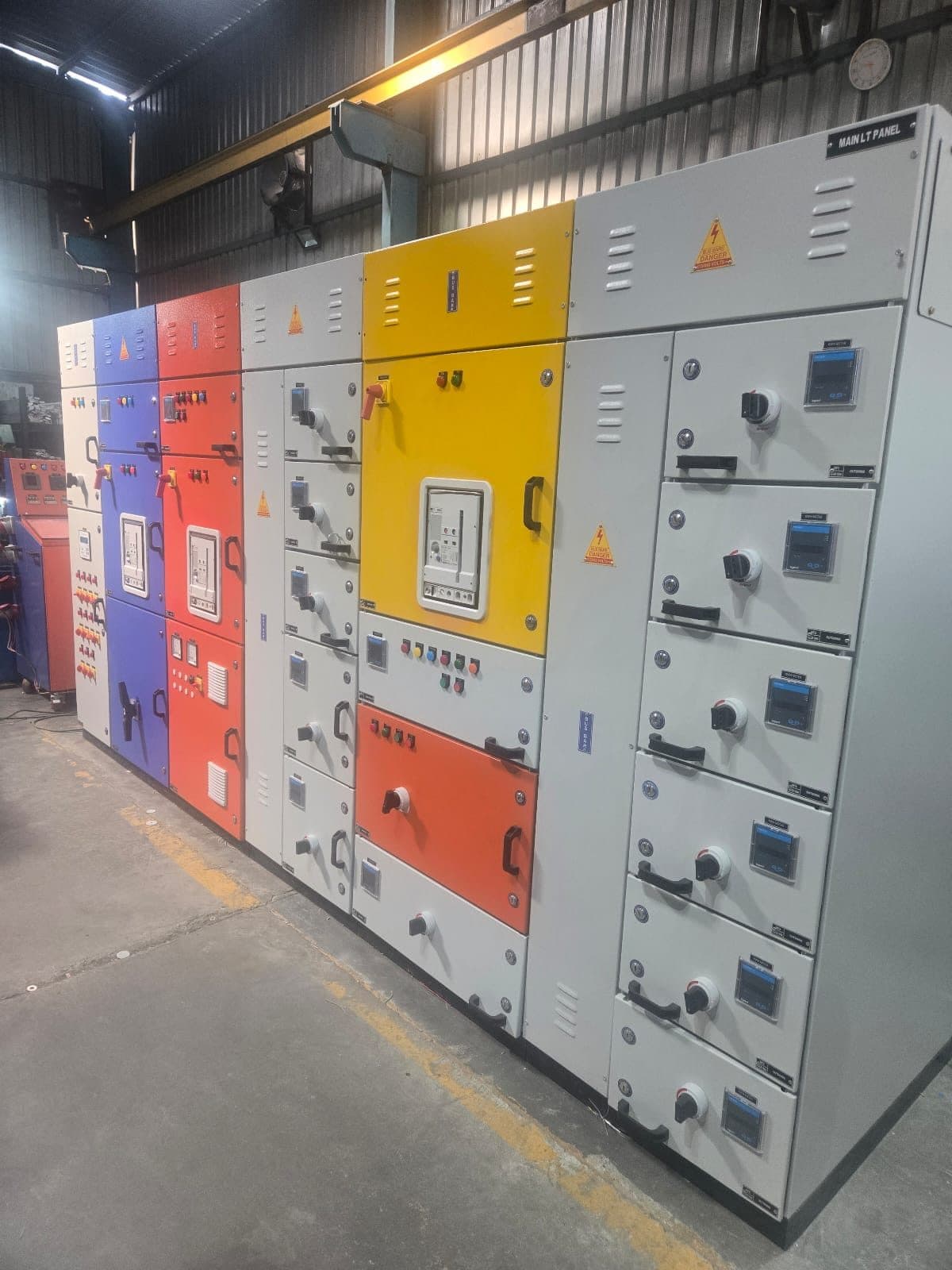

Power Control Centre (PCC)
Modular panels that control and distribute power to heavy machinery, motors and transformers in large facilities.
Overview
Power Control Centres (PCC) are modular, structured electrical control panels used to control the power supply to large industries and commercial units.
Power supplied to big and heavy machinery, equipment, motors and transformers is controlled through the PCC to suit each site's requirements.
A Trident PCC panel rated 415 V, 4000 A has been short-circuit tested at the Central Power Research Institute (CPRI), Bhopal.
Key features
- Modular, structured construction
- Controls supply to heavy machinery, motors and transformers
- Short-circuit tested design (CPRI)
- Built to site-specific requirements
| Tested rating | 415 V, 4000 A |
|---|---|
| Short-time withstand | 50 kA for 1 s (105 kA peak), CPRI Bhopal |
| High-voltage withstand | 2.5 kV rms for 1 minute after short-circuit test |
| Test standard | IS 8623 (Part 1) |
Applications
- Large industries
- Commercial complexes
- Infrastructure projects
